3D Scanning and Reverse Engineering

Clone. Generate digital models from existing physical objects
Quote request

Let us generate a digital 3D model for you based on your instructions. This can be a physical part, a picture, or a “napkin sketch”. We use sophisticated 3D scanning systems and CAD software to produce a design ready for tangible object realization and prototyping.

We use 3D scanning systems that are non-invasive and can easily capture data on-site for reverse engineering applications. Our 3D scans provide a 3D point cloud and inspection data streamlining design, CAD drafting and analysis process.
This scanned data can be used either for 3D printing, inspection or for converting to solid 3D model files for additional modification for prototypes or production purposes.

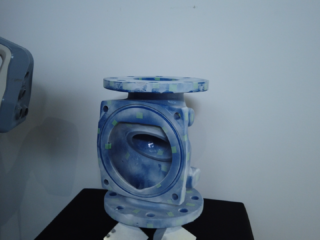

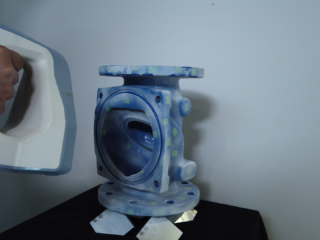

3D scanning process

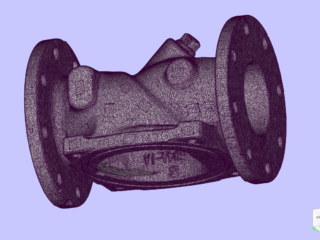

    Working with scanned file

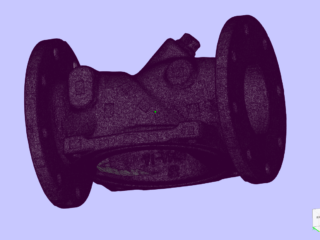

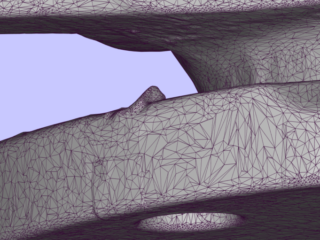

    Getting mesh 3D CAD file

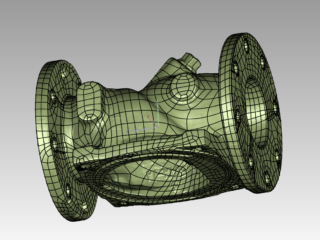

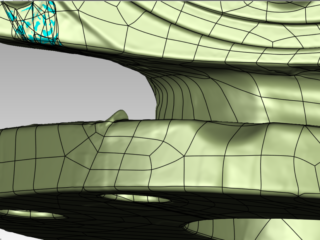

    Creating surfaces from mesh file

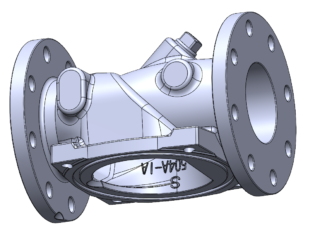

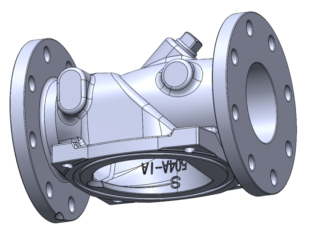

    Creating 3D CAD file using 3D CAD software and compare it to 3D scanned file

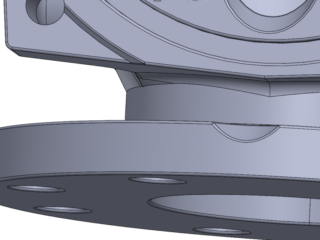

    Side by side comparison of scanned and CAD file
